Portable Access Platform: ‘PAL-100’

Adjustable, Self-supporting Access Ladders for Tank Trucks or Railcars

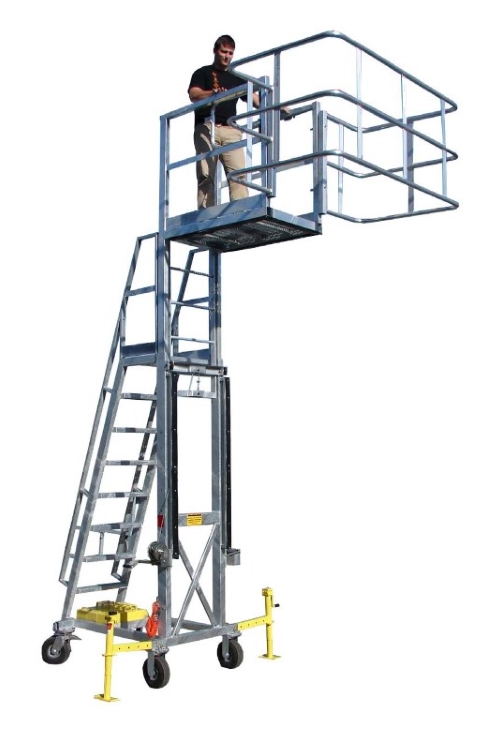

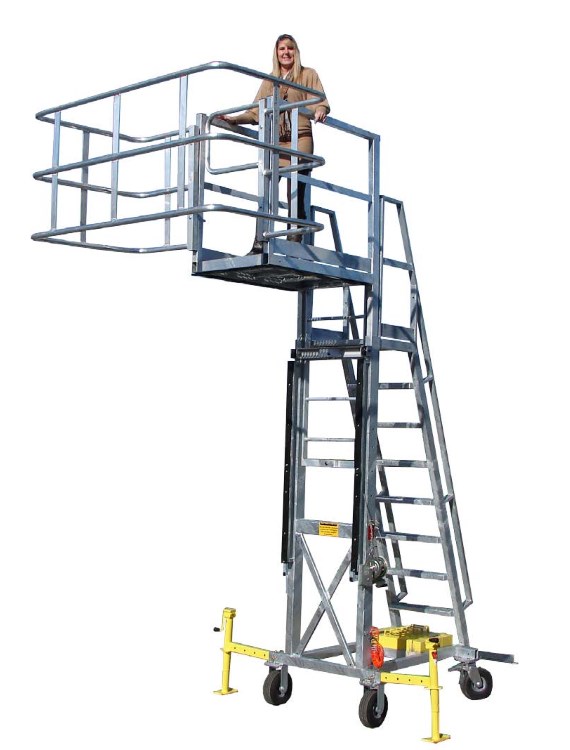

The GREEN Portable Access Ladder and Platform (PAL100), is designed to provide safe access and fall protection on the tops of tank and bulk trucks.

This self-supporting unit provides portable access with a safety cage designed for applications that do not allow the ability to use permanent truck loading platforms, or when space is limited.

Cost Effective • Innovative Designs

Benko Products | Made in the USA | Built to Last

Built to Last

Portable Access Units: ‘PAL-100’ - Specifications

Features
GREEN Portable Platforms have many features:
• Adjustable height from 9' to 13'.
• Self-supporting design.
• Platform 2' x 4' long, with grip strut surface.
• Rubber bumpers to prevent damage
and direct contact with the vehicle.
• Ergonomically designed
• Manual cable operation.
• Adjustable Outriggers designed for all heights.
• Optional tow bar available.
1-year Manufacturer's Warranty.

Materials of Construction
Rugged construction includes:
• Welded steel with aluminum cage.
• 2, 8" swivel casters with brakes.
• 2. 8" fixed direction casters.

Finishes
• Hot Dipped Galvanized
• Red oxide primer
• Gray enamel / Safety Yellow
• Custom finishes available

Self-Supporting Design
• Counterweighted design allows access without being supported by the vehicle.
• Rated to 500 lbs.

Always confirm unit dimensions with your
sales representative prior to ordering!

Extra Features
• Unit can be customized to create a
Portable Transloading System.
• Ask your sales representative for more details.

Safety Cages
• Various, custom designed safety cages available

Engineering
Custom engineered, computer designed units are available. Contact us for more information on getting started today!

Options
• 10" foam filled tires available
• Optional tow bar

GREEN Portable Platforms - Image Gallery

GREEN Adjustable, Self-supporting Access Platforms for Tank Trucks or Railcars | USA Made by Benko GREEN Adjustable, Self-supporting Access Platforms for Tank Trucks or Railcars | USA Made by Benko

GREEN Portable Platforms provide portable access, with safety enclosures, designed for those
applications that don't allow the ability to use permanent truck loading platforms.
